Dialogue System

Mission Control adds a dialogue API for use in combat dialogue. A contract writer can use it to gain much more control and information over dialogue. All the features of the dialogue system were introduced in MC v1.5.

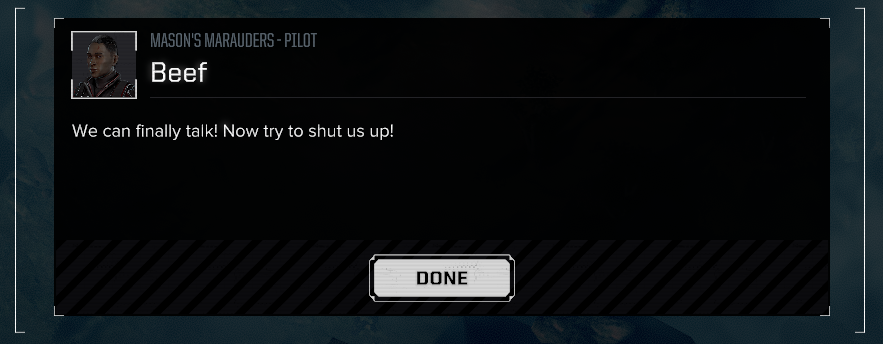

Pilot Dialogue

Dynamic CastDefs - Player Lance Pilots as Cast

In vanilla BattleTech the Player's Commander and lance pilots cannot be involved in any contract dialogue. With Mission Control a contract writer can select your Commander or any Player lance pilot to talk in the contract.

Commander

The Commander is the actual Commander pilot created at the start of a Career or Campaign playthrough. You can use this both if the Commander is part of the dropped Player lance or is left behind on the Argo/Leopard.

To use this approach you put castDef_Commander as your selectedCastDefId.

{
  "dialogue": {
    "EncounterObjectGuid": "73df8d9c-a274-48fd-98c9-2bd0d7860e83"
  },
  "name": "Dialogue_MissionStart",
  "overrideDialogueBucketId": "",
  "dialogueContent": [
    {
      "words": "I'm your Commander! Listen to me, Pilots!",
      "wordsColor": { "r": 1, "g": 1, "b": 1, "a": 1 },
      "selectedCastDefId": "castDef_Commander",
      "emote": "Default",
      "audioName": "NONE",
      "cameraFocusGuid": "",
      "cameraDistance": "Far",
      "cameraHeight": "Default",
      "revealRadius": -1
    }
  ]
}

Pilot - True Random

A true random pilot is one that is randomly selected from all Plaer lance pilots. It doesn't keep track of who was selecetd last time it was used and can select the Commander if the Commander is a dropped lance pilot.

To use this approach you put castDef_TeamPilot_Random as your selectedCastDefId.

{
  "dialogue": {
    "EncounterObjectGuid": "73df8d9c-a274-48fd-98c9-2bd0d7860e83"
  },
  "name": "Dialogue_MissionStart",
  "overrideDialogueBucketId": "",
  "dialogueContent": [
    {
      "words": "I'm a random Player pilot talking. It will show my name and pilot portrait in the dialogue.",
      "wordsColor": { "r": 1, "g": 1, "b": 1, "a": 1 },
      "selectedCastDefId": "castDef_TeamPilot_Random",
      "emote": "Default",
      "audioName": "NONE",
      "cameraFocusGuid": "",
      "cameraDistance": "Far",
      "cameraHeight": "Default",
      "revealRadius": -1
    }
  ]
}

Pilot - Bound Random

A bound random pilot is one that is randomly selected from unbound Player lance pilots. It is bound for reference in further dialogue entries and even referenced in the actual dialogue (see Commander & Pilot References).

NOTE: If castDef_Commander is used at all in the contract's dialogue then castDef_TeamPilot_Random_[IDENTIFIER] will never select the Commander pilot if they dropped into combat. This is to prevent weird situations where the Commander would end up having conversations with themself.

To use this approach you put castDef_TeamPilot_Random_[IDENTIFIER] as your selectedCastDefId. [IDENTIFIER] can be anything such as a number or a useful word to track your plot, such as castDef_TeamPilot_Random_AnnoyedPilot.

{
  "dialogue": {
    "EncounterObjectGuid": "73df8d9c-a274-48fd-98c9-2bd0d7860e83"
  },
  "name": "Dialogue_MissionStart",
  "overrideDialogueBucketId": "",
  "dialogueContent": [
    {
      "words": "I'm a random Player pilot talking. I can be referenced or reused for more dialogue later in the contract.",
      "wordsColor": { "r": 1, "g": 1, "b": 1, "a": 1 },
      "selectedCastDefId": "castDef_TeamPilot_Random_1", // Could also be castDef_TeamPilot_Random_AnnoyedPilot
      "emote": "Default",
      "audioName": "NONE",
      "cameraFocusGuid": "",
      "cameraDistance": "Far",
      "cameraHeight": "Default",
      "revealRadius": -1
    }
  ]
}

Pilot - Specific Lance Position

A specific lance position pilot is one that is selected based on its position as it existed when it was organised in the lance units selection screen.

NOTE: Using this approach for selecting lance units for dialogue is not recommended. When units die using this approach it's not guarnteed to correctly align the castDefs and dialogue references (unlike the other approaches that handle it seamlessly). If you must use this it's recommened you keep the dialogue using it to as early as possible in the mission and to highly scripted missions.

RECOMMENDATION: Use Commander or Bound Random unless you absolutely must have a unit in a specific position talking instead as it handles pilot death seamlessly.

To use this specific lance position approach you put castDef_TeamPilot_Position_[number] where [number] is the position of the unit you wish to select in the Player's lance. The first unit starts at position 1.

{
  "dialogue": {
    "EncounterObjectGuid": "73df8d9c-a274-48fd-98c9-2bd0d7860e83"
  },
  "name": "Dialogue_MissionStart",
  "overrideDialogueBucketId": "",
  "dialogueContent": [
    {
      "words": "I'm Player pilot 1. The first pilot in the lance.",
      "wordsColor": { "r": 1, "g": 1, "b": 1, "a": 1 },
      "selectedCastDefId": "castDef_TeamPilot_Position_1", // Selects unit 1 in the Player Lance (if unit isn't dead)
      "emote": "Default",
      "audioName": "NONE",
      "cameraFocusGuid": "",
      "cameraDistance": "Far",
      "cameraHeight": "Default",
      "revealRadius": -1
    }
  ]
}

Unit Ejection / Death Fallback

When units are destroyed or pilots eject then it makes no sense for them to continue talking in the contract for the dialogue. In this case the dialogue system attempts to reassign the speaker of the 'dead' pilot to another pilot or Dropship crew member. The following situations and what happens are explained, when:

Commander dies when using castDef_Commander - Darius takes over the dialogue
Commander dies when selected for castDef_TeamPilot_Random_[identifier] - Another pilot that is not bound to another castDef_TeamPilot_Random_[identifier] takes over the dialogue. If there are no more unbound pilots then Darius takes over the dialogue
Pure Random pilot dies - Another pilot is randomly selected
Bound Random pilot dies - Another pilot that is not bound to another castDef_TeamPilot_Random_[identifier] takes over the dialogue. If there are no more unbound pilots then Darius takes over the dialogue
Specific Position pilot dies - A random pilot is selected but often a desync happens every time a dialogue for this pilot occurs. Also, references in dialogue to this TeamPilot_Position_[number] can desync. Not Recommended

References - Before & After Processing

Any mention of 'References' refers to the following two approaches:

{...} - Process the information within the curly braces before BattleTech runs its processing / interpolation on the dialogue text
[...] - Process the information within the square braces after Mission Control's {...} processing and BattleTech runs its processing / interpolation on the dialogue text

Not every API is available at both {...} and [...] as for some it doesn't make sense. Each section will make it clear at which level it is available. For examples, mostly {...} will be used unless the API being described isn't available in that level.

Commander & Pilot References

AVAILABLE IN: {...} / before

Mission Control provides an API for use in the actual dialogue that allows you to get information related to pilots. This isn't possible with vanilla BattleTech.

Speaker

A modder can access the speaker's information with: {MC.PlayerLances.Speaker.[PROPERTY]}. This is useful for all Commander and pilot dialogue situations but it's especially useful for True Random Pilots (castDef_TeamPilot_Random) so they can reference themselves when talking, as there is no other way to reference their information.

Commander

A modder can access the Commander's information with: {MC.Commander.[PROPERTY]} and {MC.PlayerLances.Commander.[PROPERTY]}. The Commander can be used regardless of if the Commander has dropped in the Player's lance as a pilot, or if they remained on the Argo/Leopard.

Pilot - Bound Random

A modder can access the bound pilot's information with: {MC.PlayerLances.TeamPilot_Random_[IDENTIFIER].[PROPERTY]}. TeamPilot_Random_[IDENTIFIER] section must match a selectedCastDefId used in the contract, for example, castDef_TeamPilot_Random_TiredPilot must be used somewhere in the contract then {MC.PlayerLances.TeamPilot_Random_TiredPilot.[PROPERTY]} can be used.

The reference / dialogue castdef order does not matter and the reference can be used before the dialogue the speaker is assigned to has been activated.

Pilot - Specific Lance Position

A modder can access the speaker's information with: {MC.PlayerLances.TeamPilot_Position_[PositionNumber].[PROPERTY]}. For example, TeamPilot_Position_[IDENTIFIER] could look like {MC.PlayerLances.TeamPilot_Position_2.[PROPERTY]}.

NOTE: It is not recommended you make use of this reference method unless you really need to use it. The reasoning is explained in Pilot - Specific Lance Position.

Properties Reference

Available properties for pilot referenecs are outlined below. More will be added in future versions of Mission Control.

Propety	Example	Details
DisplayName	`{MC.PlayerLances.Speaker.DisplayName}`	If the speaker is a pilot their callsign will appear. If the speaker is a dropship crew member their first name will appear.
UnitName	`{MC.PlayerLances.TeamPilot_Random_1.UnitName}`	Simple name of the unit, e.g. `Atlas`
UnitVariant	`{MC.PlayerLances.Commander.UnitVariant}`	Variant name of the unit, e.g. `AS7-D`

Some examples of how this looks are:

Commander introduces themselves

{
  "dialogue": {
    "EncounterObjectGuid": "73df8d9c-a274-48fd-98c9-2bd0d7860e83"
  },
  "name": "Dialogue_MissionStart",
  "overrideDialogueBucketId": "",
  "dialogueContent": [
    {
      "words": "Hi, I'm Commander {MC.PlayerLances.Speaker.DisplayName}",
      "wordsColor": { "r": 1, "g": 1, "b": 1, "a": 1 },
      "selectedCastDefId": "castDef_Commander",
      "emote": "Default",
      "audioName": "NONE",
      "cameraFocusGuid": "",
      "cameraDistance": "Far",
      "cameraHeight": "Default",
      "revealRadius": -1
    }
  ]
}

Pilot has a conversation with another pilot

{
  "dialogue": {
    "EncounterObjectGuid": "73df8d9c-a274-48fd-98c9-2bd0d7860e83"
  },
  "name": "Dialogue_MissionStart",
  "overrideDialogueBucketId": "",
  "dialogueContent": [
    {
      "words": "Hey {MC.PlayerLances.TeamPilot_Random_2}! How are things?",
      "wordsColor": { "r": 1, "g": 1, "b": 1, "a": 1 },
      "selectedCastDefId": "castDef_TeamPilot_Random_1",
      "emote": "Default",
      "audioName": "NONE",
      "cameraFocusGuid": "",
      "cameraDistance": "Far",
      "cameraHeight": "Default",
      "revealRadius": -1
    },
    {
      "words": "Hey {MC.PlayerLances.TeamPilot_Random_1} - Doing good thanks.",
      "wordsColor": { "r": 1, "g": 1, "b": 1, "a": 1 },
      "selectedCastDefId": "castDef_TeamPilot_Random_2",
      "emote": "Default",
      "audioName": "NONE",
      "cameraFocusGuid": "",
      "cameraDistance": "Far",
      "cameraHeight": "Default",
      "revealRadius": -1
    }
  ]
}

Random pilot replying to the Commander

{
  "dialogue": {
    "EncounterObjectGuid": "73df8d9c-a274-48fd-98c9-2bd0d7860e83"
  },
  "name": "Dialogue_MissionStart",
  "overrideDialogueBucketId": "",
  "dialogueContent": [
    {
      "words": "Damn. That ambush was tough to fight though. Let's push on!",
      "wordsColor": { "r": 1, "g": 1, "b": 1, "a": 1 },
      "selectedCastDefId": "castDef_Commander",
      "emote": "Default",
      "audioName": "NONE",
      "cameraFocusGuid": "",
      "cameraDistance": "Far",
      "cameraHeight": "Default",
      "revealRadius": -1
    },
    {
      "words": "With you through hell and highwater, {MC.Commander.DisplayName}!",
      "wordsColor": { "r": 1, "g": 1, "b": 1, "a": 1 },
      "selectedCastDefId": "castDef_TeamPilot_Random",
      "emote": "Default",
      "audioName": "NONE",
      "cameraFocusGuid": "",
      "cameraDistance": "Far",
      "cameraHeight": "Default",
      "revealRadius": -1
    }
  ]
}

Conditional Dialogue

AVAILABLE IN: {...} / before

Mission Control can allow you to conditionally display dialogue based on some pre-defined logic. This is powerful as it can add another layer of variation on top of your contract. You can guide your contract based on how the player is playing the contract or even the game itself.

Overview

Conditional dialogue has the following rules:

Conditions must always be at the start of the dialogue
Conditions that resolve to true / success will display the dialogue
Conditions that resolve to false / failure will not display the dialogue
Conditions must always start with {MC.If to indicate it's a conditional

Multi-Conditions

You can combine up to 2 conditionals together to form a multi-conditional check. The rules for multi-conditions are:

Multi-conditions must wrap the conditions in another {...}
Multi-conditions can only use AND or OR to combine conditions

For example:

{{conditional1} AND {conditional2}} (high level structure)
{{MC.If.EmployerFactionName.Contains.Capellan} OR {MC.If.Commander.HasTag.commander_family_noble}}

Reference - Faction-Related

You can check faction information with the faction related conditions.

API	Example	Details
*FactionType	`{MC.If.EmployerFactionType.Is.Pirate}`	Check a Team's Faction's Type. Teams: EmployerTeam, TargetTeam Operations: `Is`, `IsNot` Types: `GreatHouse`, `Merc`, `Pirate`, `Clan`, `RealFaction`
*FactionName	`{MC.If.TargetFactionName.Contains.Capellen}`	Check a Team's Faction's Name. Teams: EmployerTeam, TargetTeam Operations: `Is`, `IsNot`, `Contains`
*FactionShortName	`{MC.If.TargetFactionShortName.IsNot.Davion}`	Check a Team's Faction's ShortName. Teams: EmployerTeam, TargetTeam Operations: `Is`, `IsNot`, `Contains`

Reference - Tags-Related

You can check any tag information with the tag-related related conditions. All tag related APIs can use the following: HasTag, HasNoTag, HasAllTags, HasAnyTags, HasNoTags. Checks that use multiple tags require the list to be comma seperated, for example, {MC.If.System.HasNoTags.planet_other_ruins,planet_civ_primitive}.

API	Example	Details
Encounter	`{MC.If.Encounter.HasNoTag.mc_blackout_phase_1b}`	An Encounter is a special Mission Control tag scope that is reset after every mission/combat.
Pilot	`{MC.If.PlayerLances.Speaker.HasTag.pilot_reckless}`	Check a pilot's tags. Pilot References: `Speaker`, `Commander`, `TeamPilot_Random_[IDENTIFIER]`
Commander	`{MC.If.Commander.HasTag.commander_youth_bankrupt}`	Check the Commander's tags
Company	`{MC.If.Company.HasAnyTags.argo_medBay2,argo_medBay3}`	Check the Company's tags
System	`{MC.If.System.HasNoTag.planet_other_ruins}`	Check the System's tags

Reference - Random

You can introduce some random elements into your dialogue with the random conditionals.

API	Example	Details
RandomPercentage	`{MC.If.RandomPercentage.IsLessThan.30%}`	Generates a random percentage from 0 to 100. If the value is within the specified range it returns a success. Operators: `Is`, `IsLessThan`, `IsLessThanOrIs`, `IsGreaterThan`, `IsGreaterThanOrIs`

Only show dialogue 25% of the time

{
  "words": "{MC.If.RandomPercentage.IsLessThanOrIs.25%}You'll only see me say this 25% of the time.",
  "wordsColor": { "r": 1, "g": 1, "b": 1, "a": 1 },
  "selectedCastDefId": "castDef_DariusDefault",
  "emote": "Default",
  "audioName": "NONE",
  "cameraFocusGuid": "e7e9f35b-7ed8-404e-9dae-69be61de2dd3",
  "cameraDistance": "Medium",
  "cameraHeight": "Default",
  "revealRadius": -1
}

Modifications in Dialogue

AVAILABLE IN: {...} / before and [...] / after

Sometimes a modder will want to make game modifications when dialogue is activated and displayed. Mission Control provides some modification APIs.

API	Example	Details
EncounterTags	`{MC.Modification.AddTo.EncounterTags.my_tag}`	Sets an Encounter tag. Operations: `AddTo`, `RemoveFrom`.
Pilot	`[MC.Modification.AddTo.SpeakerTags.my_tag]`	Sets a tag for a pilot. Operations: `AddTo`, `RemoveFrom`. Pilot References: `SpeakerTags`, `TeamPilot_Random_[IDENTIFIER]_Tags`
CommanderTags	`[MC.Modification.RemoveFrom.CommanderTags.my_tag]`	Sets a Commander tag. Operations: `AddTo`, `RemoveFrom`.
CompanyTags	`{MC.Modification.RemoveFrom.CompanyTags.my_tag}`	Sets a Company tag. Operations: `AddTo`, `RemoveFrom`.
SystemTags	`[MC.Modification.AddTo.SystemTags.my_tag]`	Sets a System tag. Operations: `AddTo`, `RemoveFrom`.

Example of adding a tag

{
  "words": "{MC.If.Commander.HasTag.commander_career_merchantGuard}{MC.Modification.AddTo.EncounterTags.mc_recognised_strange_turrets}<color=#85DBF6FF>[Merchant Guard Career]</color> ...the way those turrets came online. It reminds me of a non-standard turret attack program I saw a merchant try and sell.",
  "wordsColor": { "r": 1, "g": 1, "b": 1, "a": 1 },
  "selectedCastDefId": "castDef_Commander",
  "emote": "Default",
  "audioName": "NONE",
  "cameraFocusGuid": "e7e9f35b-7ed8-404e-9dae-69be61de2dd3",
  "cameraDistance": "Medium",
  "cameraHeight": "High",
  "revealRadius": -1
}

Formatting

AVAILABLE IN: [...] / after

Mission Control can help you format text. Some text that comes from BattleTech is in the wrong style or case. This is usually the case with the vanilla BattleTech {TEAM_EMP.FactionDef.Name} reference, as they are all first character lowercase. You can fix it with the following:

Propety	Example	Details
ToUpper	`[MC.Format.ToUpper.{TEAM_EMP.FactionDef.Name}]`	Changes the property to all upper case formatting
ToLower	`[MC.Format.ToLower.{TEAM_EMP.FactionDef.Name}]`	Changes the property to all lower case formatting
ToUpperFirst	`[MC.Format.ToUpperFirst.{TEAM_EMP.FactionDef.Name}]`	Changes the property's first character to upper case formatting
ToAlternating	`[MC.Format.ToAlternating.{TEAM_EMP.FactionDef.Name}]`	Changes the property to alternating lower then upppercase formatting

Example fixing FactionDef.Name

{
  "words": "[MC.Format.ToUpperFirst.{TEAM_EMP.FactionDef.Name}] wish you safe, Ms. Bosh. We'll have you out of here momentaily.",
  "wordsColor": { "r": 1, "g": 1, "b": 1, "a": 1 },
  "selectedCastDefId": "castDef_DariusDefault",
  "emote": "Default",
  "audioName": "NONE",
  "cameraFocusGuid": "e7e9f35b-7ed8-404e-9dae-69be61de2dd3",
  "cameraDistance": "Medium",
  "cameraHeight": "Default",
  "revealRadius": -1
}

Tricks & Tips

Overcoming the 2 Conditional Limit per Multi-Conditional

Currently the multi-conditional system only supports combining up to 2 conditionals. You can overcome this by using a dialogue node to combine checks into one via a tag.

Make a dialogue run a Multi-Conditional check
On success, set an Encounter-level tag with a Modification
In the same dialogue, set the rest of the text to be |SKIP| - this will prevent the dialogue from appearing even though the conditionls and modification ran

This way you can now use the tag you set in a new multi-conditional with a third conditional check. You'll be able to stack these up to achieve as many conditional checks as you need.

Example

// Combine two conditionals into a tag
{
  "words": "{{MC.If.Encounter.HasTag.mc_recognised_strange_turrets} AND {MC.If.Encounter.HasTag.mc_blackout_phase1b}}{MC.Modification.AddTo.EncounterTags.mc_solved_crime}|SKIPDIALOGUE|"
}
// In another dialogue, use this tag with another conditional
{
  "words": "{{MC.If.Encounter.HasTag.mc_solved_crime} AND {MC.If.Commander.HasTag.commander_youth_bankrupt}}Say something unique to this situation!"
}

#Dynamic CastDefs - Player Lance Pilots as Cast

#Commander

#Pilot - True Random

#Pilot - Bound Random

#Pilot - Specific Lance Position

#Unit Ejection / Death Fallback

#References - Before & After Processing

#Commander & Pilot References

#Speaker

#Commander

#Pilot - Bound Random

#Pilot - Specific Lance Position

#Properties Reference

#Commander introduces themselves

#Pilot has a conversation with another pilot

#Random pilot replying to the Commander

#Conditional Dialogue

#Overview

#Multi-Conditions

#Reference - Faction-Related

#Reference - Tags-Related

#Reference - Random

#Only show dialogue 25% of the time

#Modifications in Dialogue

#Example of adding a tag

#Formatting

#Example fixing FactionDef.Name

#Tricks & Tips

#Overcoming the 2 Conditional Limit per Multi-Conditional

#Example

Dynamic CastDefs - Player Lance Pilots as Cast

Commander

Pilot - True Random

Pilot - Bound Random

Pilot - Specific Lance Position

Unit Ejection / Death Fallback

References - Before & After Processing

Commander & Pilot References

Speaker

Commander

Pilot - Bound Random

Pilot - Specific Lance Position

Properties Reference

Commander introduces themselves

Pilot has a conversation with another pilot

Random pilot replying to the Commander

Conditional Dialogue

Overview

Multi-Conditions

Reference - Faction-Related

Reference - Tags-Related

Reference - Random

Only show dialogue 25% of the time

Modifications in Dialogue

Example of adding a tag

Formatting

Example fixing FactionDef.Name

Tricks & Tips

Overcoming the 2 Conditional Limit per Multi-Conditional

Example
